• Wheels, 16" x 7" (40.6 cm x 17.8 cm) Ultra Silver Metallic cast aluminum
• Tires, P265/70R16 all-season, blackwall
• Pickup box
• Tire, compact spare T175/80R18, blackwall (Requires (RTX) compact spare, 18" x 4.5" (45.7 cm x 11.4 cm) Black cast aluminum wheel.)
• Wheel, compact spare, 18" x 4.5" (45.7 cm x 11.4 cm) Black cast aluminum
• Bumper, rear Chrome
• CornerStep, rear bumper
• Moldings, Black beltline
• Headlamps, projector-type with LED signature
• Cargo box light, back of Cab
• Mirrors, outside manual-folding, Black
• Glass, windshield shade band
• Door handles, Black
• Tailgate, locking
• Tailgate handle, Black

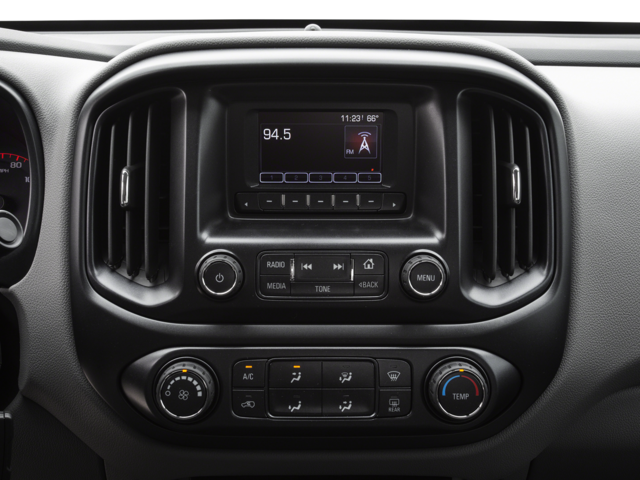

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB port and auxiliary jack
• Audio system feature, 6-speaker system

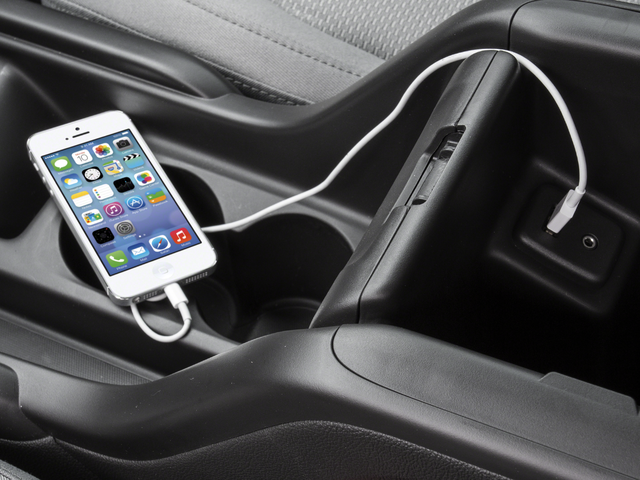

• Audio system feature, USB port, located on instrument panel

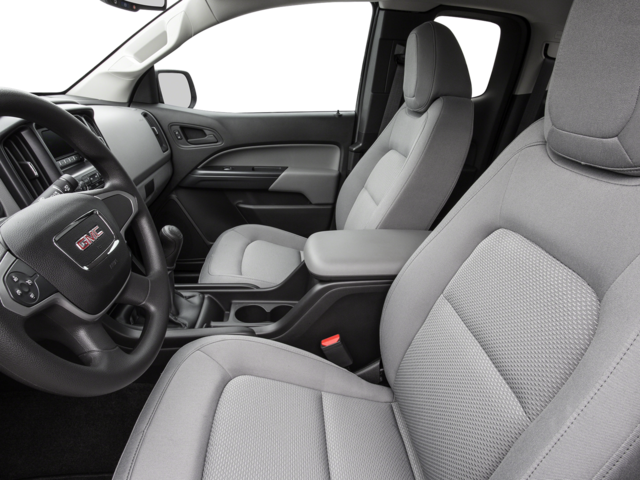

• Seats, front bucket
• Seat adjuster, driver 4-way power with manual recline
• Seat adjuster, passenger 2-way manual, fore/aft with manual recline

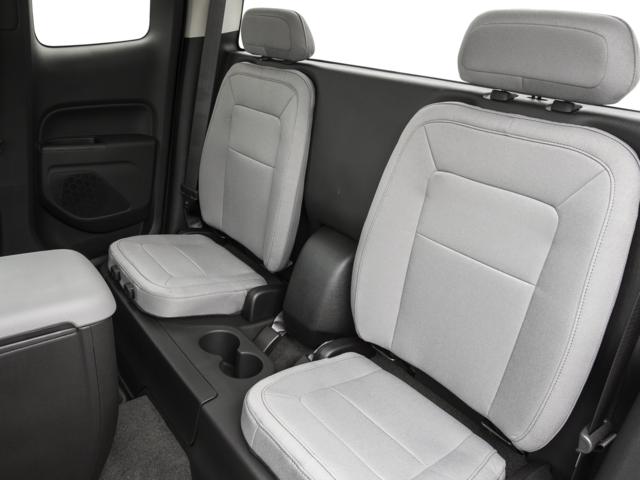

• Seats, dual rear with underseat storage

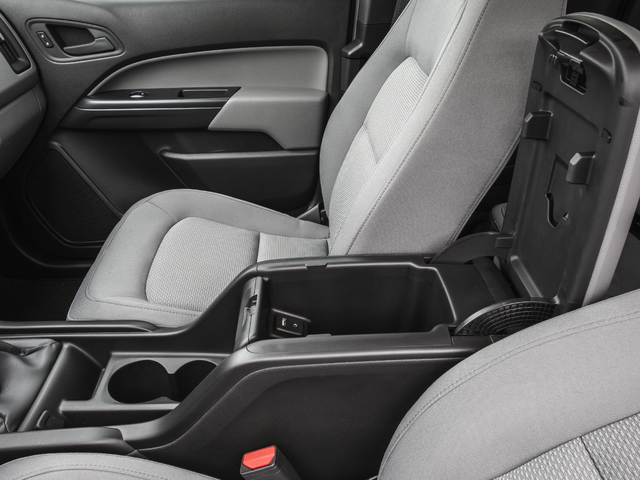

• Console, floor, front compartment, custom
• Floor covering, color-keyed carpeting
• Floor mats, carpeted front (Deleted when (B38) full-length Black vinyl floor covering is ordered. Requires (B30) color-keyed carpeting floor covering.)
• Floor mats, carpeted rear (Requires (B30) color-keyed carpeting floor covering.)

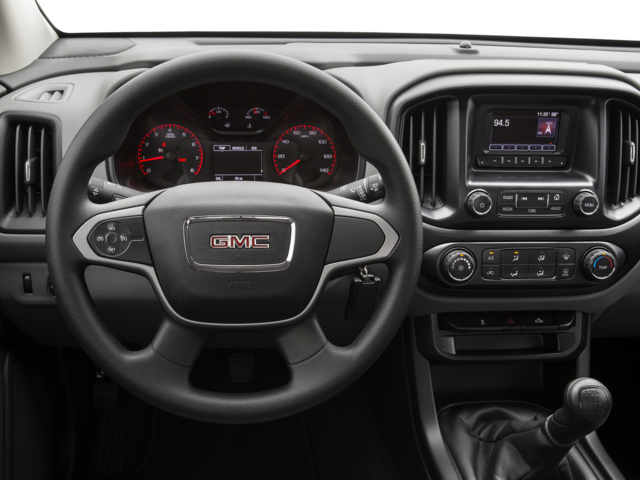

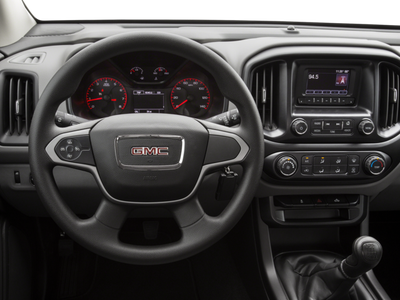

• Steering wheel, urethane
• Steering column, tilt, manual
• Display, driver instrument information enhanced, one color
• Door locks, power

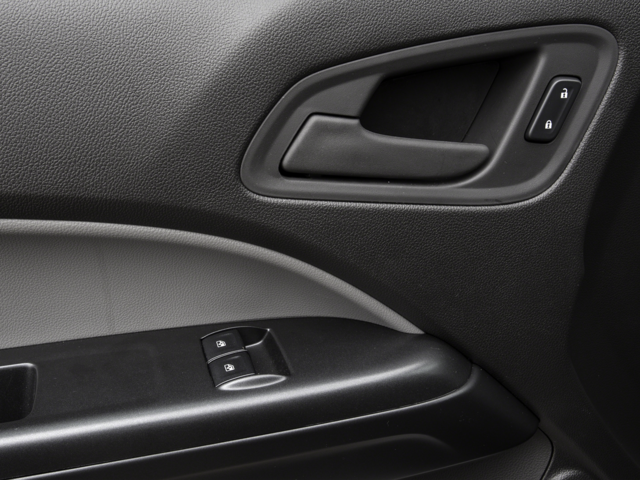

• Windows, power with driver Express-Up and Down
• Theft-deterrent system, immobilization
• Air conditioning, single-zone manual climate control
• Handles, door release, front and rear, Jet Black
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger with passenger covered vanity mirror
• Lighting, interior, center dome

• StabiliTrak, stability control system
• Traction control, electronic
• Daytime Running Lamps
• Air bags, dual-stage frontal and side-impact, driver and front passenger and head-curtain for all outboard seating positions with Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Tire Pressure Monitor System

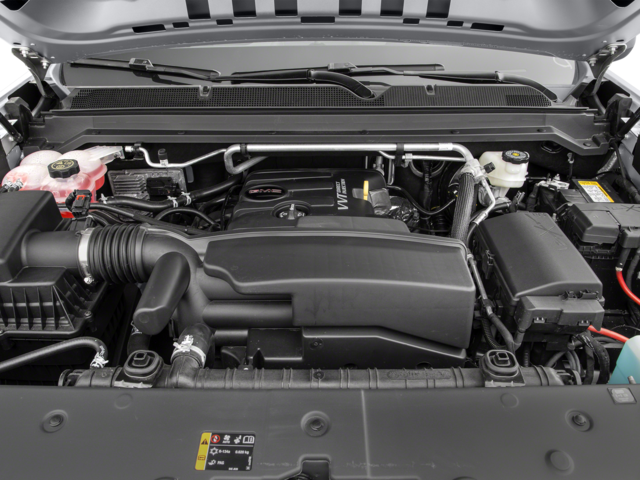

ENGINE, 2.5L I4, DI, DOHC, VVT ($0)

• (200 hp [149.0 kW] @ 6300 rpm
• 191 lb-ft of torque [259 N-m] @ 4400 rpm) (STD)

• Vehicle
• Number of Passenger Doors: 2
• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2900
• Gross Axle Wt Rating - Rear (lbs): 3300
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 5600
• Gross Combined Wt Rating (lbs): 8500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
• Maximum Trailering Capacity (lbs): 7000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.2 x 1.0
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 0.7
• Tires
• Front Tire Order Code: QJJ
• Rear Tire Order Code: QJJ
• Spare Tire Order Code: QDC
• Front Tire Size: P265/70R16
• Rear Tire Size: P265/70R16
• Spare Tire Size: T175/80R18
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 18 x 4.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Fully-boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 21
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 128.30
• Length, Overall w/o rear bumper (in): 212.4
• Width, Max w/o mirrors (in): 74.30
• Height, Overall (in): 70.30
• Overhang, Front (in): 36.90
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 36.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.30
• Ground Clearance, Rear (in): 8.30
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 74.00
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 57.80
• Cargo Box Width @ Wheelhousings (in): 44.40
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 49.90
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 41.40
• Front Leg Room (in): 45.00
• Front Shoulder Room (in): 57.50
• Front Hip Room (in): 55.00
• Second Head Room (in): 36.70
• Second Leg Room (in): 28.60
• Second Shoulder Room (in): 57.30
• Second Hip Room (in): 52.20
• Summary
• Vehicle Name: GMC Canyon
• Body Style: Extended Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.4
